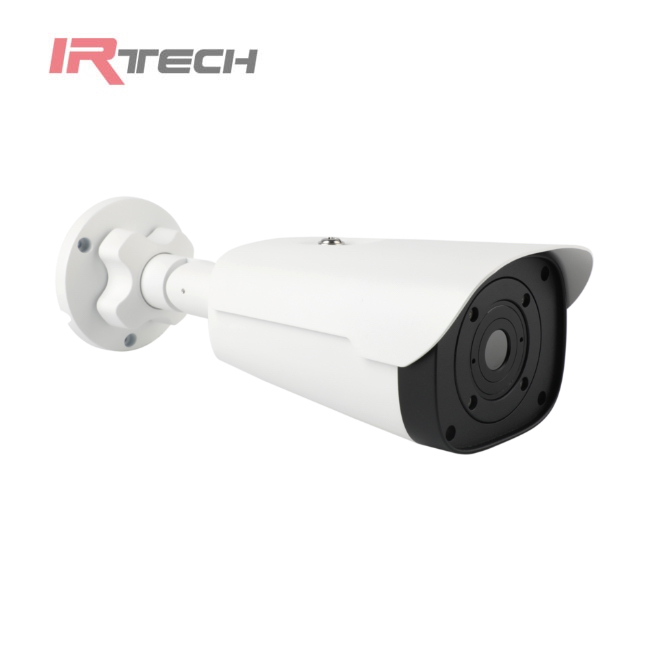

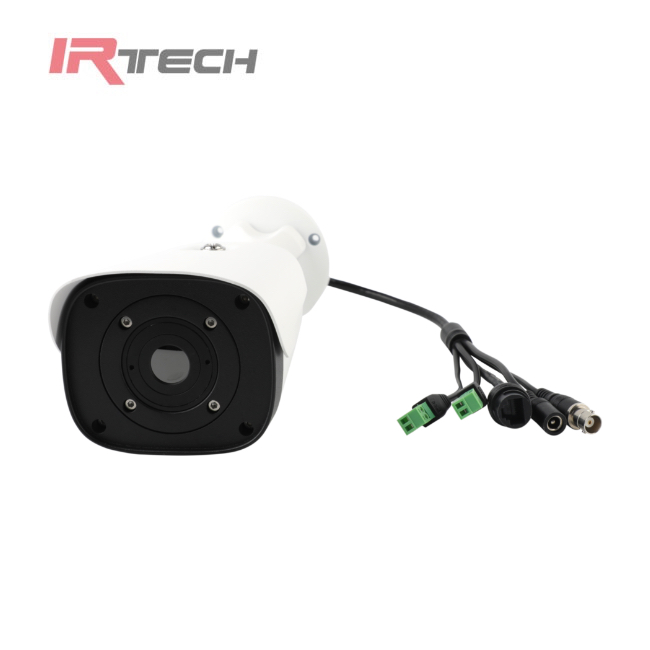

DLD-J Thermal Network Bullet Camera
◆ Maximum image size is 640*512
◆ Multiple specifications of lens options
◆ Built-in multiple pseudo-color codes
◆ Support grayscale and motion detection alarm function
◆ Support ONVIF Profile S communication protocol
◆IP66 protection grade
Items |
Technical parameters |
|
Detector |
||
Type |
Uncooled VOx |
|
Resolution |
640*512 / 384*288 |
|
Pixel spacing |
17μm |
|
NETD |
≤40mK |
|
Wavelength range |
8-14μm |
|
Frame rate |
50Hz |
|
Lens |
||
Focus & FOV |
19mm:32.8°* 24.6° |
50mm:12.5°* 9.4° |
25mm:24.9°* 18.7° |
75mm:8.3°* 6.2° |
|
37mm:16.8°* 12.6° |
100mm:6.2°* 4.7° |
|
Focusing mode |
19/25/37/50mmnon-thermalized lens; 75/100mmElectric focusing lens |
|
Function |
||
Image display |
Black heat / white heat / iron red / rainbow and other 14 kinds of pseudo-color |
|
Brightness/gain adjustment |
Yes |
|
Noise reduction |
Yes |
|
Image enhancement |
Yes |
|
Correction |
Yes |
|
Image flip |
Yes |
|
E-zoom |
1~16X |
|
Alarm |
Grayscale alarm; motion detection |
|
Memory |
Built-in storage |
|
Network |
||
Ethernet |
RJ45 100/1000M adaptive Ethernet port |
|
Video Compression Format |
H.264 |
|
Protocol |
HTTP;RTSP;ONVIF;GB28181;PELCO |
|
Security |
Authorized username and password, MAC address binding; HTTPS encryption; IEEE 802.1x network access control, IP address filtering |
|
Web viewer |
Support edge, chrome and firefox browsing |
|
Power supply |
||
External power supply |
DC12V±10% |
|
Power consumption |
≤6W(normal operation at room temperature) |
|
Environment |
||
Working temp. |
-35℃ - +60℃ |
|
Storage temp. |
-45℃ - +70℃ |
|
Protection grade |
IP66 |
|
Physical characteristic |
||
Materials |
Metal shell |
|
Weight |
2.5Kg(different parameters configuration will vary, subject to the actual product) |
