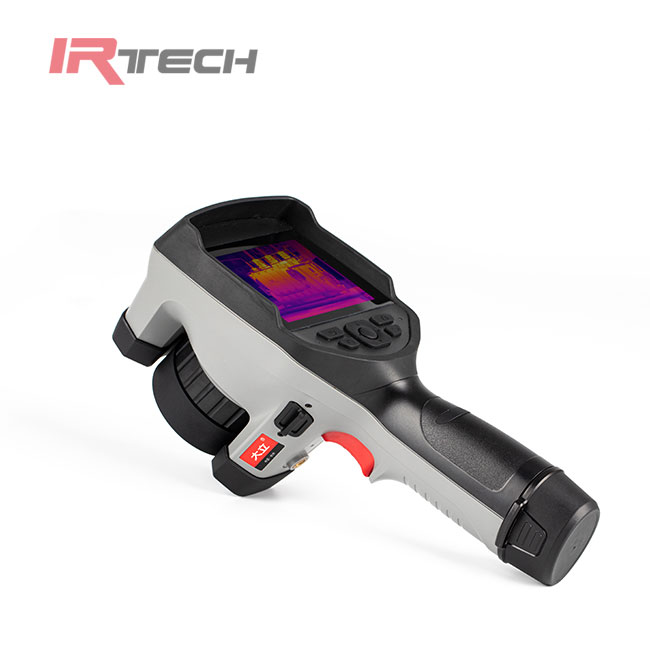

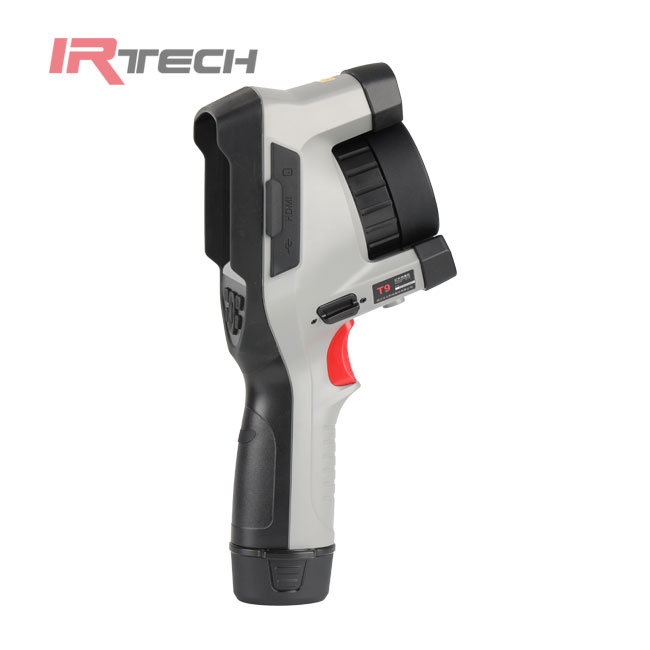

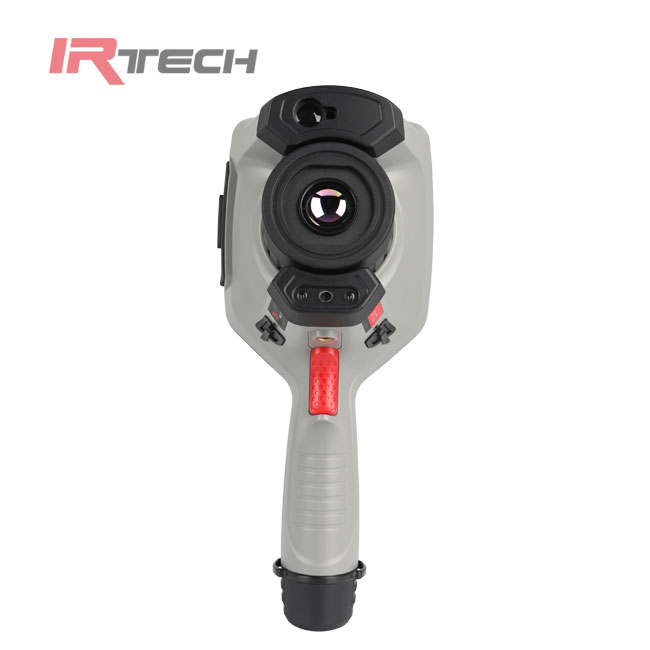

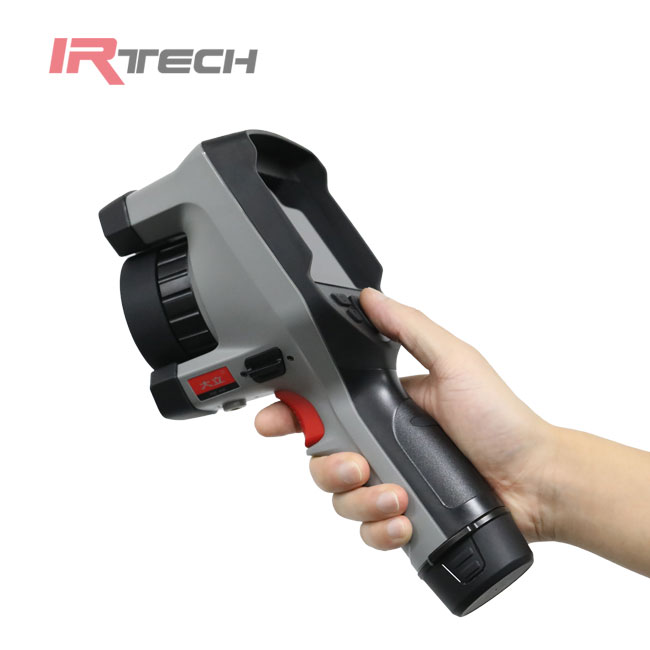

T9/10-M Professional Thermal Imager
Hand-automatic lens can automatically identify
4-inch bright touch screen, graphical interface operation
5 million pixels of visible light, dual-LED fill light
With infrared, visible light, picture-in-picture, dual-band image fusion mode
Laser ranging can automatically focus according to the target distance
With image and
Items |
T9 |
T10 |
|
Detector |
Type |
Uncooled focal plane micro-thermal |
|
Resolution |
384×288 |
640×480 |
|
Wavelength range |
8~14um |
||
Thermal sensitivity |
≤0.05℃ |
||
Frame rate |
50/60Hz |
||
Lens |
Lens |
Automatic Identification |
|
Focusing method |
Manual/electric/automatic |
||
FOV |
25°×19° |
||
Focusing range |
0.1m~∞ |
||
Dispaly |
Resolution |
640×480 |
|
Backlight |
High brightness sunlight screen |
||
Palette (pattern) |
11 color codes can be selected |
||
Image adjustment |
automatic / manual |
||
Image |
Spatial resolution |
1.12mrad |
0.67mrad |
Super pixel function |
768×576 |
1280×960 |
|
Display method |
Infrared, visible light, picture-in-picture, dual-band fusion image (DSIE) |
||
Digital zoom |
1~4x |
||
Visible light camera |
500 million pixels |
||
Video output |
HDMI |
||
Anchor point display |
Laser positioning points are displayed on the image |
||
Storage |
Memory |
TF card |
|
Video recording |
Yes, the general video format storage of this machine, timing storage can be set, support infrared, visible light, fusion mode |
||
Image storage |
Yes, infrared image JPEG format, with infrared temperature data; visible light, fusion JPEG format storage |
||
Note |
60-second voice recording, stored with the image, optional text annotation |
||
Measurement |
Temperature range |
-20℃~+650℃,can be extended to 1200℃ |
|
Temperature accuracy |
±2℃ or ±2% of measured value, whichever is greater |
||
Temperature measurement mode |
Real-time 4 movable points (the hottest and coldest points are independent), 3 movable areas (the highest temperature, the lowest temperature capture, average temperature measurement), line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color) |
||
Atmospheric window correction |
Corrected according to infrared window transmittance |
||
Atmospheric transmittance correction |
Automatic, according to the input target distance, relative humidity, ambient temperature |
||
Background temperature correction |
Automatically correct according to the entered temperature |
||
Emissivity correction |
The emissivity is adjustable from 0.01 to 1.0 (in increments of 0.01), or the emissivity can be corrected through a predefined material emissivity meter |
||
Power system |
Battery |
Rechargeable lithium battery, replaceable |
|
Battery working time |
4 hours |
||
Battery charging time |
Fast charging function (external charger), can be charged randomly |
||
Power management |
Automatic sleep, automatic shutdown |
||
Physical characteristic |
Overall size |
W116×D175×H278mm |
|
Total Weight |
≤1.1kg(including battery) |
||
Handrail |
Yes, can be installed on both sides |
||
tripod |
1/4″-20-UNC |
||
Interface |
Memory card slot |
TF card connector |
|
Data interface |
Mini-USB Type C ,picture/video transmission |
||
Video interface |
Micro-HDMI |
||
Power connector |
Mini-USB Type C |
||
Others |
Laser |
Laser rangefinder |
|
Fill light |
2 LED |
||
Microphone |
Yes |
||
Buzzer |
Yes |
||
WiFi |
Real-time image transmission, can be operated through the mobile APP control menu, stored images can be analyzed to generate reports, applicable to Android & ios systems |
||
Bluetooth module |
Audio output/input (Bluetooth headset) |
||
GPS |
Yes |
||
Electronic compass |
Yes |
||
Set up |
Date/time, temperature unit ℃/℉/K, language, LCD backlight, IP address |
||
Environmental parameter |
Operating temperature |
-15℃~+50℃ |
|
storage temperature |
-40℃~+70℃ |
||
Humidity |
≤95% non-condensing |
||
Protection level |
IP54 |
||
Vibrate |
2g,GB/T2423.10(IEC60068-2-6) |
||
Rush |
30g,GB/T2423.5(IEC60068-2-27) |
||
Fall |
2m,GB/T2423.8(IEC60068-2-32) |
||
Security |
Performance |
GB/T19870-2005 |
|
Safety |
GB4943.1-2011 |
||
EMC |
Meet CE requirements |
||
RoHS |
2011/65/EC |
||
Laser |
IEC60825-1-2014 |
