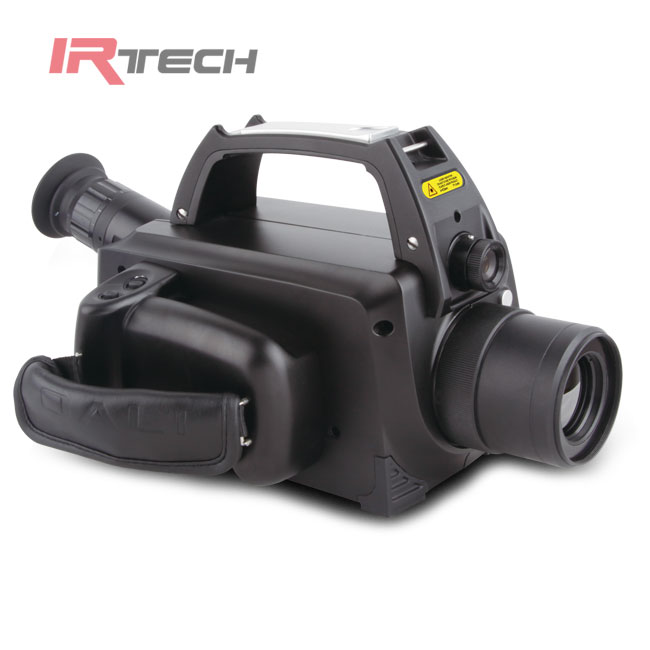

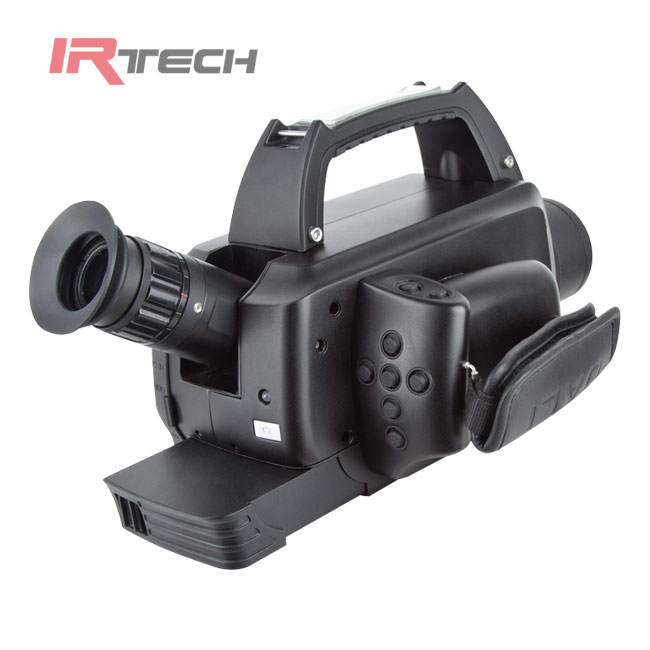

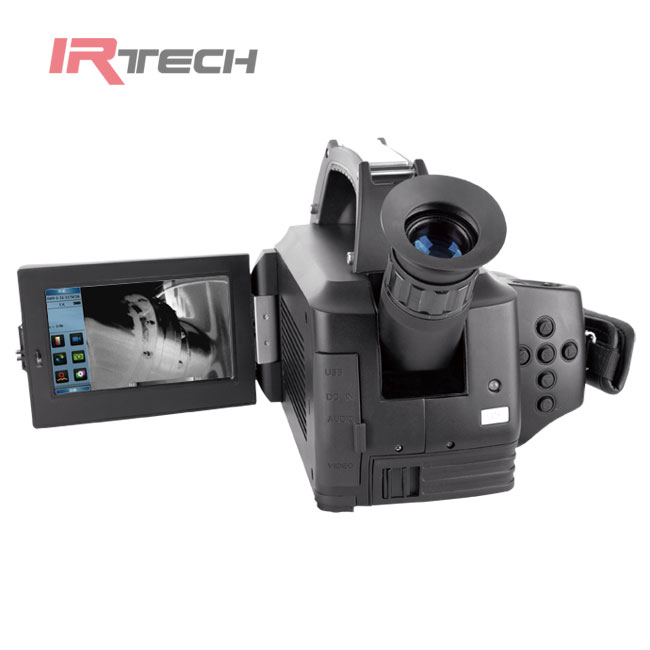

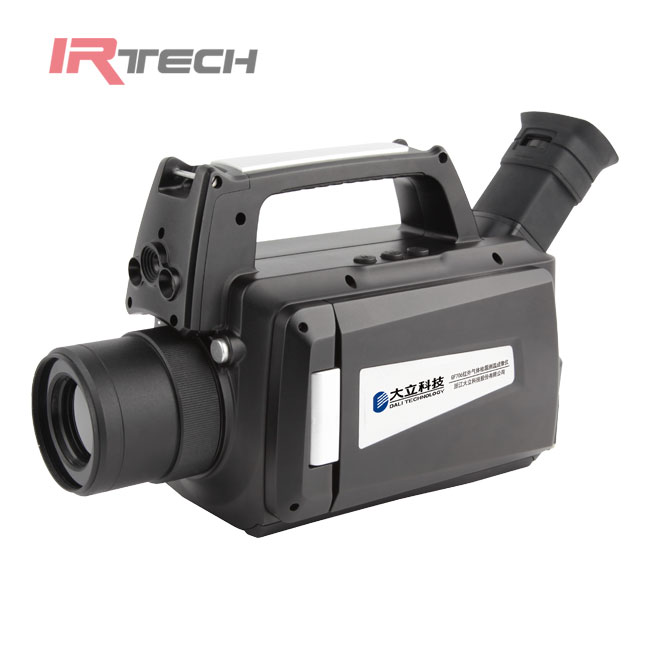

GF706 Gas Detection Thermal Imager
|
Items |
GF706 |
||||
|
Detector |
|||||
|
Type |
Cooled quantum well FPA |
||||
|
Resolution |
320×256 |
||||
|
Image |
|||||
|
FOV/Minimum focal length |
14.5°×10.8°/0.5m |
24°×18°/0.3m |
8.8°×6.7°/0.8m |
||
|
Spatial resolution |
0.79mrad |
1.13mrad |
0.48mrad |
||
|
NETD |
≤0.015℃@30℃ |
||||
|
SF6 detect sensitivity |
≤0.001ml/s |
||||
|
Frame rate |
60Hz |
||||
|
Focal |
Auto/manual Electric |
||||
|
Spectral range |
10.3-10.7um，peak value 10.55um |
||||
|
Visual camera built-in |
5.00M pixels CMOS，with LED |
||||
|
Display |
|||||
|
View finder |
HD 0.6” color OLED，with zooming function |
||||
|
LCD |
High resolution 5” color touch screen |
||||
|
Measurement |
|||||
|
Range |
-40℃～+500℃ |
||||
|
Accuracy |
±2℃ or ±2% |
||||
|
Adjustment |
Auto/manual |
||||
|
Mode |
Up to 10 movable spots，5 movable area（maximum & minimum temp. capture、average temp. measure），line temp. measure，isotherm analysis，temp. difference measure， overheated alarm（voice、light） |
||||
|
Image settings |
Color palette |
11 color palettes for option（including iron，rainbow，black-white，black-white reverse...） |
|||
|
Adjustment |
Automatically/manually contrast、brightness adjust |
||||
|
Settings |
Date/time，℃/℉/K，language |
||||
|
Emissivity adjustment |
Variable from 0.01to 1.0（increment: 0.01） or predefined emissivity option |
||||
|
Ambient temp. adjustment |
Auto, or user setting |
||||
|
Atmospheric transmissivity adjustment |
Auto，or user settings: object distance、relative humidity、ambient temperature |
||||
|
Storage |
|||||
|
Memory card |
8G SD card，max 32G |
||||
|
Storage method |
Manual/auto single frame photo saving，visual, thermal video recording |
||||
|
File format - thermal |
Single frame |
JPEG，with 14bits original image data |
|||
|
Dynamic |
MPEG-4 or with 14bits original video data |
||||
|
File format - visual |
Single frame |
JPEG |
|||
|
Dynamic |
MPEG-4 |
||||
|
Voice annotation |
60seconds' voice recording，stored with images（microphone built-in) |
||||
|
Target indication |
|||||
|
Laser pointer |
Class 2，1mW/635nm, red |
||||
|

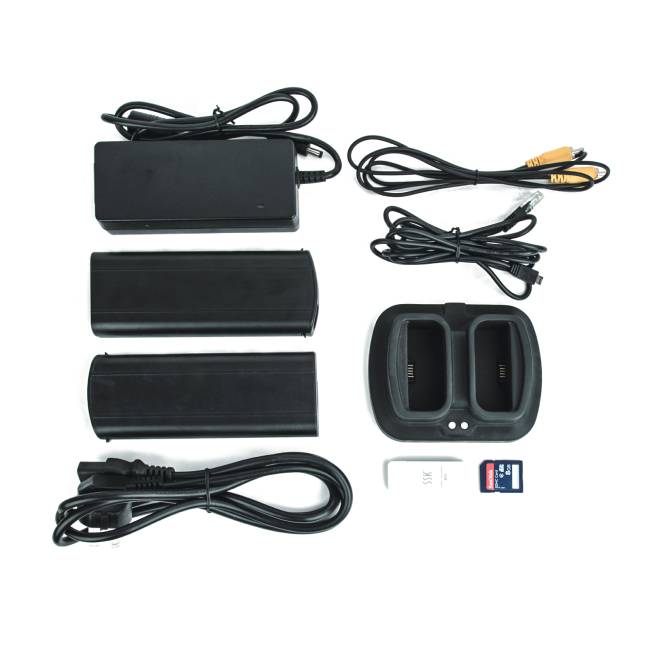

Power supply |
|||||
|
Battery |
Li-on battery，rechargeable |
||||
|
Operation time |
2 hours continuous operation |
||||
|
Charging |
Smart charger or power adapter（optional） |
||||
|
Energy-saving mode |
Yes |
||||
|
Power input |
10-15V DC |
||||
|
Environment |
|||||
|
Working temp. |
-15℃~+50℃ |
||||
|
Humidity |
≦90％（Non-condensing） |
||||
|
Protection grade |
IP54 |
||||
|
Dimension & weight |
|||||
|
Weight |
2.5Kg |
||||
|
Dimension |
270mm×172mm×177mm |
||||
|
Interface |
|||||
|
Power input |
Yes |
||||
|
Audio output |
Yes |
||||
|
Video output |
Standard AV output |
||||
-
