Black Body（Thermodynamic terminology）

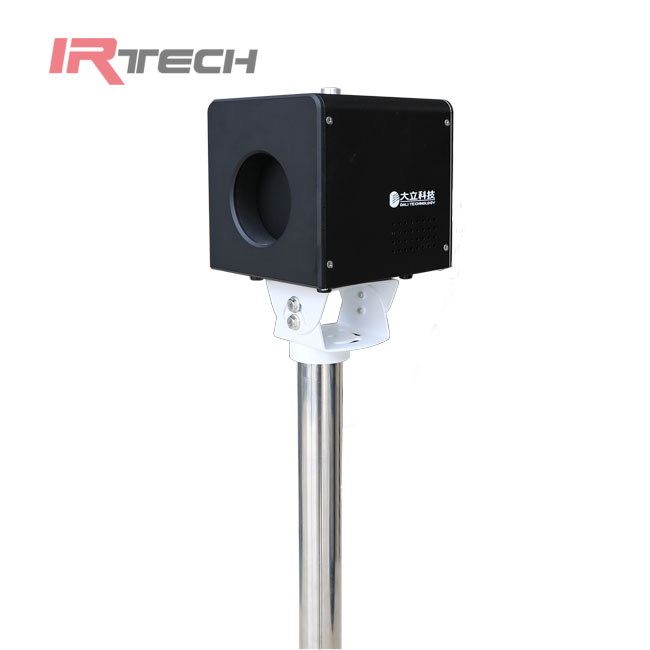

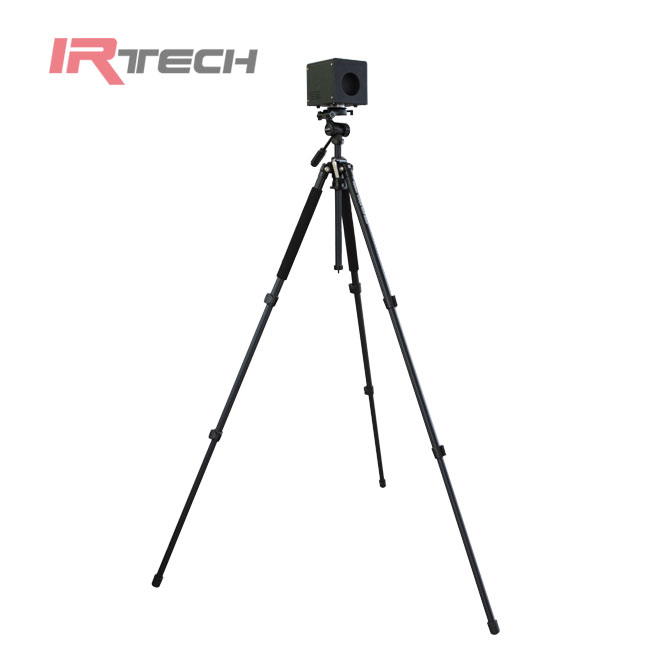

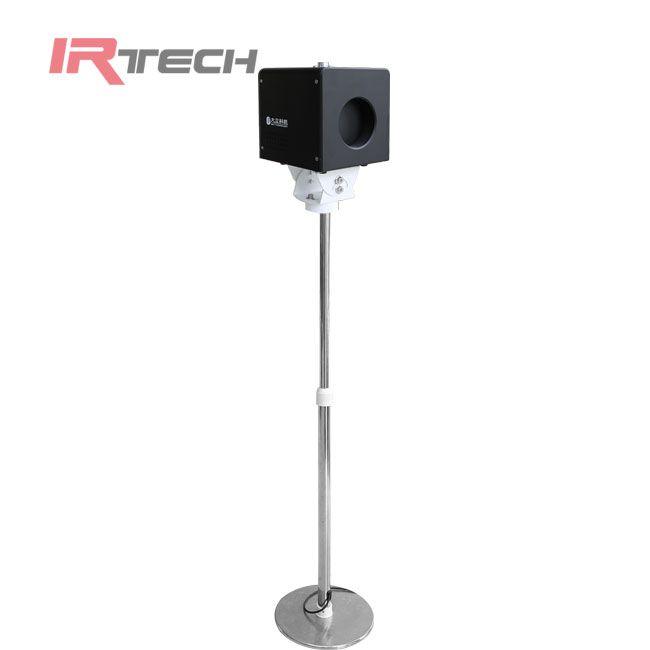

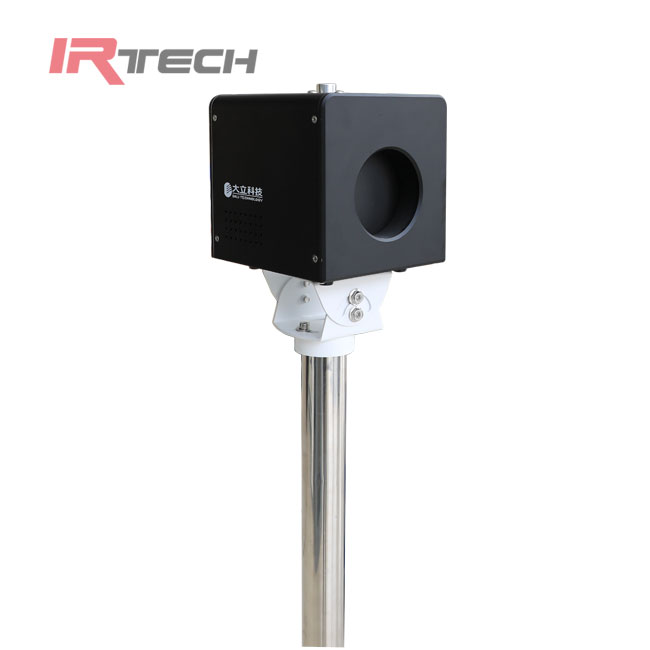

The HT40B black body radiation source was produced by Zhejiang Dali Technology Co., Ltd. The product description is as follows:
1. The selection of imported intelligent thermostats, high-temperature control accuracy, and stable performance.
2. The radiation target surface uses high emission rate aerial coatings.
3. The product has stable performance and is easy to use.
1. The selection of imported intelligent thermostats, high-temperature control accuracy, and stable performance.
2. The radiation target surface uses high emission rate aerial coatings.
3. The product has stable performance and is easy to use.
|
Items |
Black body（Thermodynamic terminology） |
|
Control the temperature |
Factory setting 37.0℃ （Ambient temperature+5.0℃~40.0℃） |
|
Effective radiation surface |
φ70mm |
|
Temperature resolution |
0.1℃ |
|
Control accuracy |
±0.2℃ |
|
Temperature uniformity |
±（0.1~0.2）℃/30min |
|
Effective launch rate |
0.95±0.02 |
|
Temperature sensor |
Pt100 |
|
Power |
110-220VAC 50Hz |
|
Consumption |
65W |
|
Dimensions |
155*153*133mm |
|
Weight |
1.8kg |
|
Use environment |
0℃～40℃, ≤80% RH |
