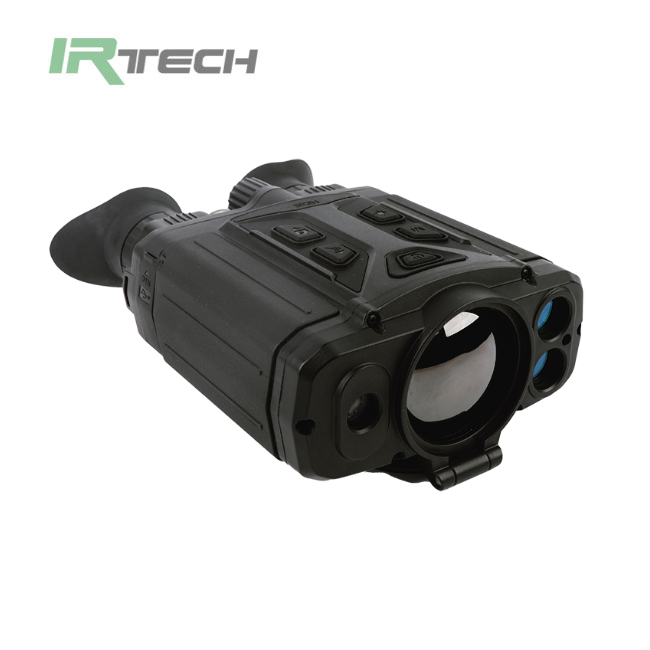

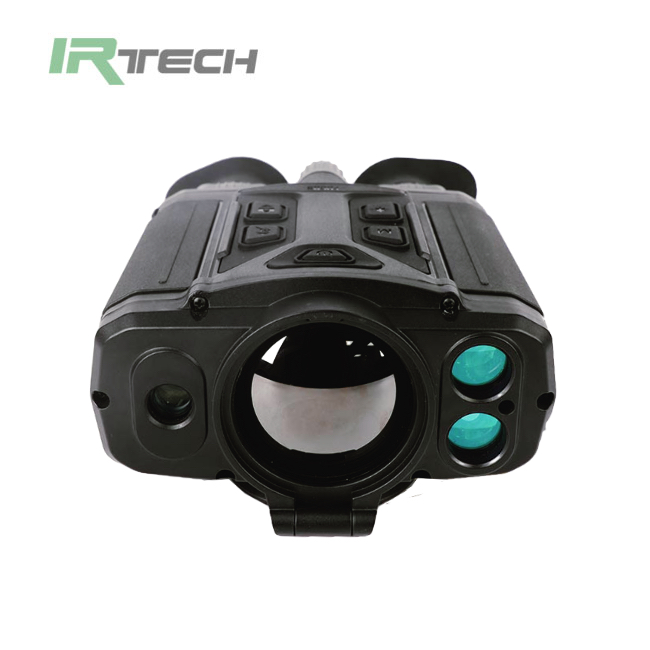

MS715 Series Thermal Imaging Binoculars

Items

MS715E

MS715

MS715P

Detector

VOx

Spectral range

8 ～14 µm

Resolution

384×288

640×512

Pixel spacing

12µm

NETD

≤35mk@30℃

IR lens

Focal length

35mm

50mm

50mm

FOV

7.5°x5.7°（±5%）

5.3°x4.0°（±5%）

8.8°*7x0°（±5%）

Focusing method

Manual focus

Low-light lens

Resolution

1920（H）×1080（V）

Image display

Monitor

Binocular 0.39-inch color OLED, resolution 1440x1080

Interpupillary  distance

56~71mm adjustable

Diopter  adjustment

-5D~+5D adjustable

Image storage

Storage card

Built-in memory

Storage method

Photo/Video

File format

JPG/MP4

Capacity

Standard 32G

Function

Brightness/ Gainess

Auto/manual

Image correction

Auto/manual

E-zoom

1.0~8.0x

Picture-in-picture

Yes

Hotspot Tracking

Yes

Laser Ranging

/

1000m±1m

Distance  display

/

Real-time display of ranging distance

Laser pointer

/

Yes

GPS positioning

/

Yes

Electronic compass

Yes

Wifi transmission

Yes

Scene mode

Natural, enhanced, highlighted

Image mode

Low light mode, infrared thermal imaging mode, dual light fusion mode

Image color code

White hot, black hot, iron red, red hot, ocean, desert, forest, etc.

Power system

Battery type

2*18650 batteries

working time

>5h

Charging  method

Support online charging and dedicated charger

External power supply

DC5V/2A（USB Type-C）

Sleep function

Yes

Environment

Working  temperature

-30℃～55℃

Storage  temperature

-40℃～70℃

Humidity

≦95％（non-condensing）

Impact  resistance

30g，GB/T2423.5（IEC60068-2-27）

Anti-vibration

2g，GB/T2423.10（IEC60068-2-6）

Encapsulation

IP66

Physical

Weight

≤0.6Kg（without battery）

Color

Black

Dimension

211（L）mm×145（W）mm× 74（H）mm

External interface

Data interface

Yes

External video

HDMI

USB

Yes

Installation  interface

1/4"-20-UNC
