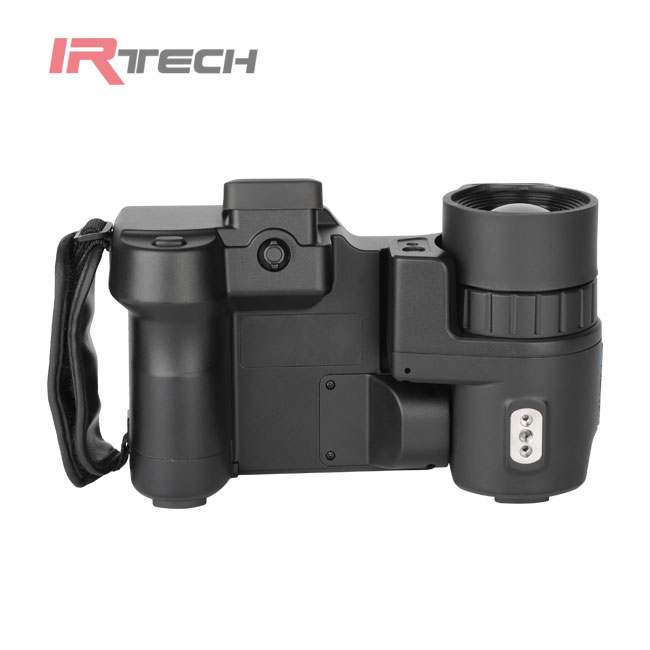

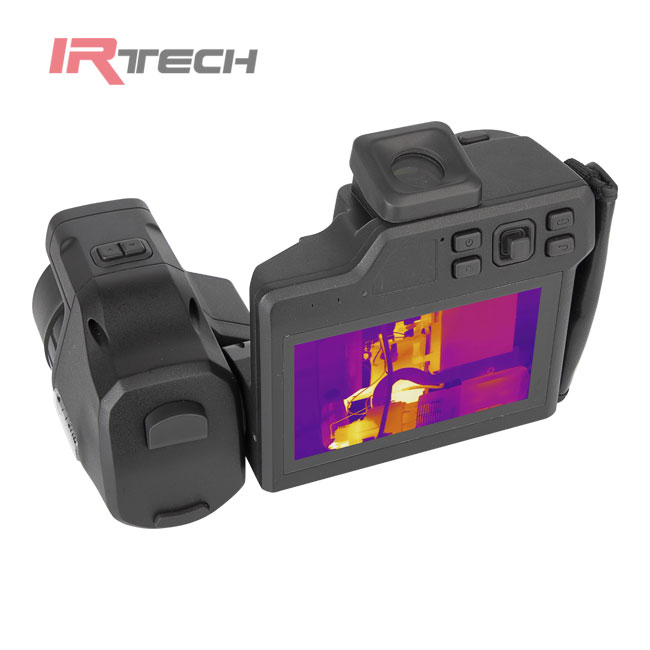

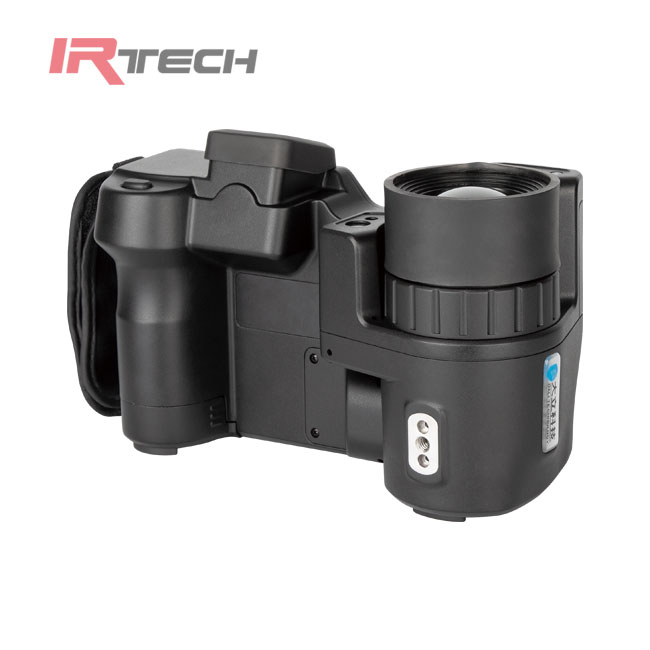

DL801/2-M Thermal Imager

Items

DL801-M

DL802-M

Type

Uncooled FPA

Resolution

640×480

1024×768


FOV

25°×19°

28.7°×21.7°

Spatial resolution

0.67mrad

0.49mrad

NETD

0.04℃@30℃

Frame rate

60Hz

Focal

Automatic/manual focus/electric focus/touch screen

Spectral range

7.5～14um

Visual camera built-in

5MP, CMOS module, built-in LED fill light

Zoom

1～40times continuous digital zoom

Super pixel

1280×960

2048×1536

Image display

LCD display

5-inch color LCD capacitive touch screen

Viewfinder

HD 0.5" color OLED

Image display

Full screen switching of infrared or visible light, picture in picture, thermal overlay, dual band fusion image

Palette

11 kinds of palettes to choose from (including iron red, rainbow, black and white, black and white reverse, etc.)

Image Processing

Automatic/manual adjustment of contrast and brightness, automatic enhancement mode

Measurement

Temperature measurement range

-40℃- +650℃，can be extended to 1200℃ or 1500℃

-40℃- +650℃，can be extended to 1200℃ or 2000℃

Precision

±1℃ or ±1%（0~150℃）

±2℃ or ±2%（Within range）

Temperature measurement correction

Automatic / manual

Measurement mode

Real-time 10 movable points, 10 movable areas (highest temperature, lowest temperature capture, average temperature measurement), movable line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color)

Setting

Date/time, temperature unit ℃/℉/K, language, contrast/brightness, LCD backlight

Emissivity correction

The emissivity is adjustable from 0.01 to 1.0 (in increments of 0.01), or corrected using a predefined substance emissivity meter

Background temperature  correction

Automatic, according to the input background temperature

Atmospheric window correction

Yes, adjustable

Atmospheric transmittance correction

Automatic, according to the input target distance, relative humidity, ambient temperature

Storage

Storage card

Built-in 128G memory and external 32G SD card (expandable)

Storage method

Manual/automatic photo or video

Infrared image format

JPEG and DLV format, with infrared raw measurement data image; MPEG4 format, video recording.

Visible light image format

JPEG / DLV /MPEG4 format

Voice notes

60 seconds of voice recording, stored along with the image (built-in microphone, can be recorded and played via Bluetooth)

Text annotation

Yes, can be predefined

Sketch Notes

Yes

Other settings

Laser

Laser ranging

GPS

Yes

Electronic compass

Yes

Microphone

Yes

Buzzer

Yes

Fill light

2 LED

Power system

Battery Type

Lithium battery, rechargeable

Battery working time

3 hours continuous work

Charging type

Smart charger charging or random (AC power adapter or 12V in-car power supply) charging

Power saving mode

Automatic sleep and shutdown

Environment

Working temp.

-15℃-+50℃

Storage temp.

-40℃-+70℃

Humidity

≦95％（non-condensing）

Encapsulation

IP54

Shock resistance

30G，IEC68-2-27

Vibration resistance

2G，IEC68-2-6

EMC

GB/T 18268.1-2010

Physical characteristic

Weight

≤1.65Kg(Including battery and standard lens）

Dimension

225mm×145mm×100mm

Tripod

1/4″-20-UNC

Interface

Power supply

Yes ，DC 12V

Memory card slot

SD card holder

USB

Yes, Mini-USB Type C, can transmit raw data video stream for real-time analysis

Wifi

Yes

Bluetooth

Yes

Video output

HDMI
